SwipeTabController

Overview

This package implements a “tabbed” view controller, that behaves in a manner similar to Android tabs.

Use this, in place of the classic Apple UITabBarController (but not always. More on that, later).

Here is the online documentation for this project.

Get the source code here (on GitHub).

What Problem Does This Solve?

The standard iOS UITabBarController has a number of restrictions, and the most obvious one, is that it does not behave like UIPageViewController, where you can “swipe” between the tabs.

Android does this. Android also usually has the tab bar on the top of the screen (like browser tabs), as opposed to the iOS positioning (at the bottom of the screen).

By implementing this module, you can have both the “swipe” behavior, and the ability to place the tab bar at either the top, or the bottom, of the screen.

It also helps to work around the issue of the UITabBarController’s propensity to have a separate navigation stack. This module will integrate the displayed screen’s navigation stack with the container’s navigation stack, giving you continuity with the container’s navigation.

And lastly, when implementing UITabBarController in iPadOS, or MacOS, Apple will swap out the fixed bottom tab bar, with a segmented control, at the top of the screen. This is not always what the user wants. LGV_SwipeTabViewController will enforce a consistent position for the “tab bar.”

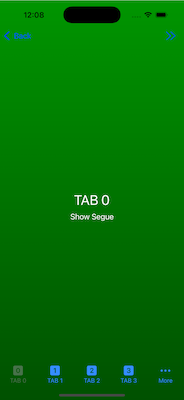

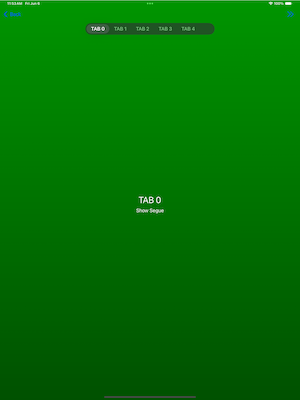

Default UITabBarController behavior:

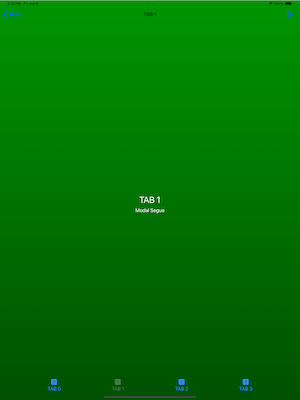

LGV_SwipeTabViewController behavior (Tab bar on bottom):

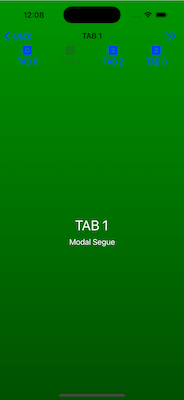

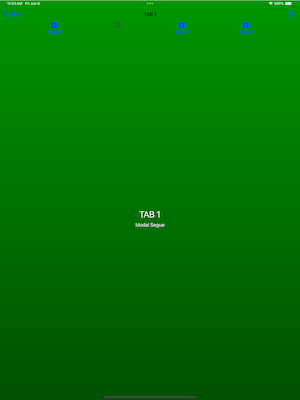

LGV_SwipeTabViewController behavior (Tab bar on top):

Requirements

This is a UIKit, Swift-only package. It is designed to be run on iOS, iPadOS, or Mac Catalyst, and is designed for native development, using Apple Xcode, or a compatible development system.

Implementing the package does not have any external dependencies (beyond the requirement for iOS/UIKit).

LGV_SwipeTabViewController vs. UITabBarController

Although LGV_SwipeTabViewController shares a lot of similarities with UITabBarController, there are some crucial differences.

The Railway Analogy

  • UITabBarController is like a railway station. You get off one train, and get onto another one. The entire context changes. This means that each tab represents a “fresh start.”
  • LGV_SwipeTabViewController is more like a switch in the railway tracks. You stay on the train, but change the direction. The context is preserved. This is more akin to choosing a path at an intersection, and then, continuing on down that path.

This means that, if you want each tab to represent a big subset of fairly uinque functionality, then LGV_SwipeTabViewController might not be the right choice. If the idea is that each tab represents a specialization of a linear UX, then it may be ideal.

Another issue is that the handling of the tab bar is more “primitive,” with LGV_SwipeTabViewController. It won’t add the “More…” item, if there’s an overflow of view controllers.

Swipe/Pan Gestures

The other big difference, is that LGV_SwipeTabViewController implements native swipe/pan gestures, and these will “argue” with swipe gestures in embedded views. If your views will have swipe gestures, then you probably shouldn’t use LGV_SwipeTabViewController.

How to Get

The SwipeTabController is supplied as a GitHub repo, and can be fetched via the Swift Package Manager, or through GitHub Carthage.

Swift Package Manager

The most direct method, is to simply add the package in your Project Target, via the Package Dependencies tab.

The repo URI is git@github.com:LittleGreenViper/SwipeTabController.git. Specify this, and add the package to your project.

Once the package is installed, you will need to make sure that you import it, where you use it:

import SwipeTabController

Carthage

Using Carthage, you’ll need to add the following line to your Cartfile:

github "LittleGreenViper/SwipeTabController"

Once you have the package installed, you may actually want to simply add the main file to your project, directly, as opposed to building the package. The entire package is implemented in that single source file.

Usage

In order to use this package, you must either instantiate, or subclass (and then instantiate that subclass of) the LGV_SwipeTabViewController class. This is the “wrapper” class that presents a screen with two main components:

There are accessors to these elements, but you don’t actually need to use them. The wrapper class abstracts them completely.

You can specify the vertical position of the tab bar and container. You can choose to have the tab bar on the top (Android-style), or the bottom (classic iOS-style). You can also choose to have the text for each tab item displayed under the image, or to its right.

The LGV_SwipeTabViewControllerType Protocol

When you specify a “wrapped” view controller, it needs to conform to the LGV_SwipeTabViewControllerType protocol. The package provides a LGV_SwipeTab_Base_ViewController base class, that does this. You can choose to subclass (or instantiate) it for your own view controllers, but it is not necessary to use that class. It is, however, required that the embedded view controllers conform to LGV_SwipeTabViewControllerType.

UITabBarItem

Your view controller must also provide a tabBarItem. This can have an image, and text, to be displayed in the tab bar.

The simplest way to implement the package, is to use the storyboard, but you can generate the classes programmatically, as long as the embedded view controller classes conform to the LGV_SwipeTabViewControllerType protocol.

Note

The view controller MUST have a tabBarItem. It MUST have either an image, a title, or both.

Using the Storyboard

Using A Segue

If you will use the storyboard, then the easiest way to include view controllers, is by specifying a segue instance, between the main container view controller (an implementation of LGV_SwipeTabViewController, or a subclass), and the embedded view controller class (a UIViewController subclass that conforms to LGV_SwipeTabViewControllerType).

Note

The Segue MUST have an ID, and that ID MUST Match the Embedded Controller Storyboard ID (so the embedded instance MUST have a storyboard ID). If the segue has an ID, but the view controller doesn’t have a matching ID, you are likely to get a runtime crash.

The segue can be any type. It is only used as a placeholder, and is never executed. For convenience, the package supplies a simple custom segue class: SwipeTabSegue.

Direct IDs

You can also specify the storyboard IDs of your view controllers, by adding them to the LGV_SwipeTabViewController.viewControllerIDs property. These need to be added BEFORE calling super.viewDidLoad().

Note

The storyboard-instantiated view controllers are ALWAYS sorted by their IDs. You need to programmatically instantiate, if you want to manage the order in another way.

Direct Instantiation

You can also directly instantiate view controllers (either via storyboard, or directly). You add these by overriding the LGV_SwipeTabViewController.generatedViewControllers computed property, and supplying the instances in an array. This array is not sorted.

Note

These are appended to any other view controllers that have been instantiated via segues or storyboard IDs.

The Test Harness App

The package provides a fairly robust and simple test harness app, that can be used to get an idea of what is required to implement the package.

In order to run this, you should select the “SwipeTabControllerTestHarness” scheme, and direct it to run on an iOS simulator or device. There is another variant of the same scheme that imports the SPM module. If you use that, ensure that the included module is up to date and installed.

The screenshots above, were all made with the test harness app.
